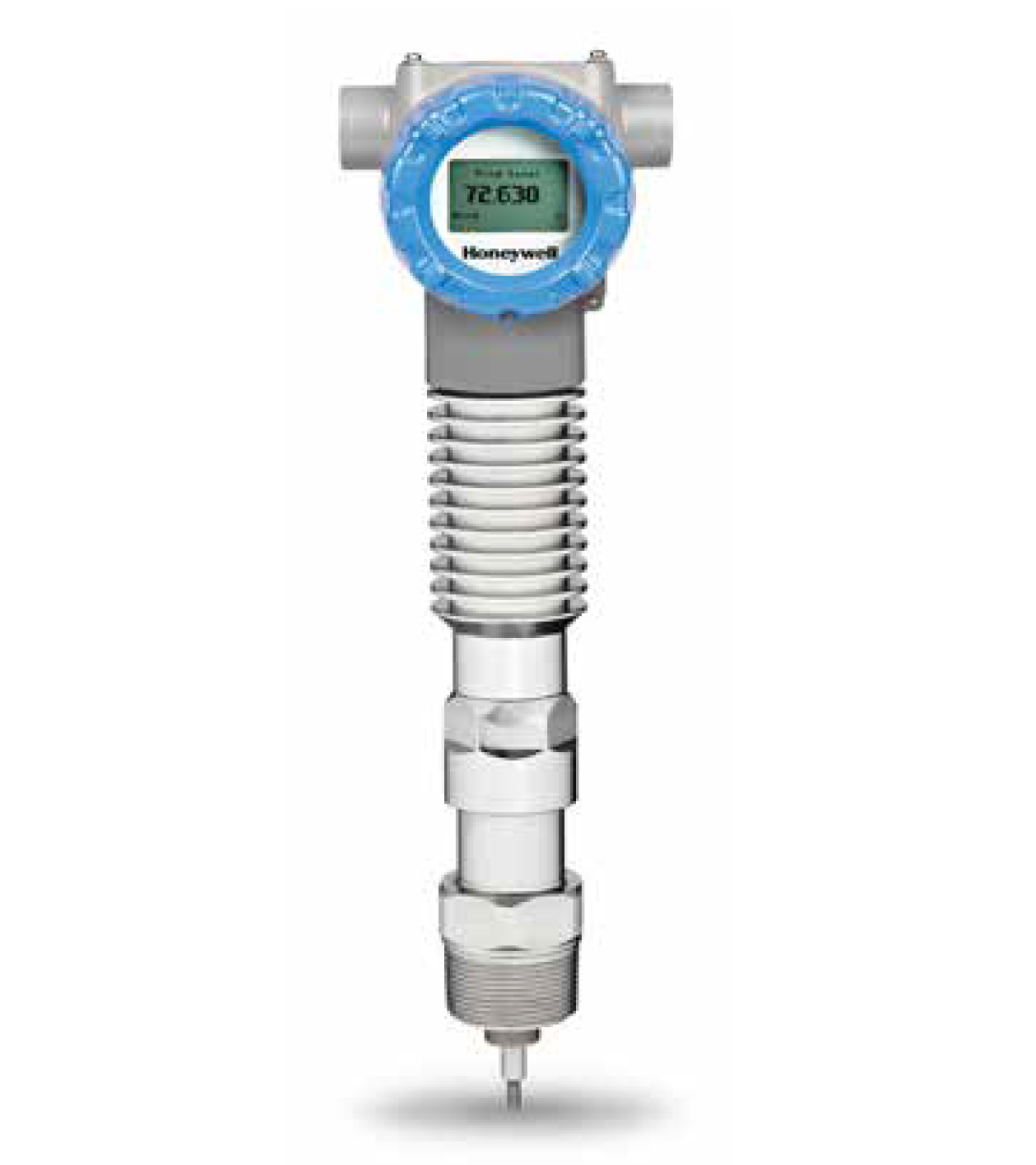

SmartLine SLG700 Level Transmitters

SmartLine Level Transmitter offers a new user experience from the start of using a new online tool or profiling the targeted tank application to the moment when the SmartLine Lavel Transmitter is installed and ready for measurement.

The SmartLine Application Validation Tool prevents costly errors upfront by validating the SmartLine Level Transmitter aginst the specfied process tank. The tool interfaces to Honeywell's order management system ensuring that the transmitter is built to the right specifications.

SmartLine Level Transmitters offers:

• Leading performance and user experience
• Unique features that lower your total cost of ownership
• Efficient control system integration

Honeywell's SmartLine Level Transmitter comes with an intuitive and smart online selection tool to help you configure best instrument for your target applicatioon. This SmartLine Application and Validation Tool provides the followingsmart benefits, leading to lowest lifecycle cost :

• Use the built in logic of the tool and collaboration functionality to speed up the selection process and order an optimal instrument for your specific application

• Document your selection process, and share it with others in the ordering process
• Get your instrument fully preconfigured and ready for use in your application to shorten the commissioning time

SmartLine SLG700 Level Transmitter is powered by innovative guided wave radar technology, which allows reliable and efficient level control in a wide range of industrial applications. Yhe instrument sets new standards for total performance and delivers the following smart benefits:

• Eliminate poor production quality and false off process trips - obstacle immunity and dynamic false echo suppression algorithm's for highly complex tanks and variable pro cesses
• Maximize use of existing tank infrastructure for lower cost-blocking distance optimiaztion maximizes installed accuracy in small tanks
• Eliminate off-process measurement and production under highly dynamic process conditions/change-over-enhanced firmware with advanced co-relation algorithm for dynamic compensation
• Increase the amount of actionable information through intuitive and advanced DTM technology.

Honeywell Transmitters are Recognized for Their Unsurpassed Performance and Accuracy :

• Accuracy : ± 3mm or 0.03% of measured distance
• Repeatability : ± 1mm
• Pressure range : -1 bar to 400 bar (-14 psi to 5801 psi)
• Temperature range : -60 to 450C (-76 F to 842F)
• Full Scope of process connections :
  - Flanges starting from DN40 and 101/2 inch
  - NPT thread starting from 3/4 inch
• Wetted materials for corrosive environments : Alloy
• C-276 and SS316
• Resolution : 1mm
• 2-wire, 4-20 mA loop power
• HART,Foundtion Fieldbus output options
• Transmitter configuration write protection
• Unequalled local display capabilities
• Comperhensive on - board diagnostic capabilities
• Full compliance to SIL 2/3 requirements as a standard
