RMA Remote Meter Assemblies
RMA Remote Meter Assemblies provide process measurement values in remote locations where the integral meter in the field instrument is difficult to view.

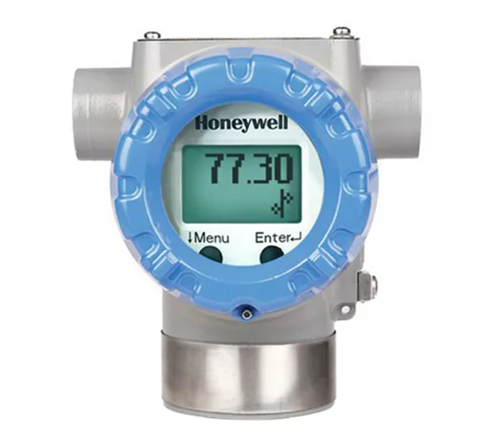

Honeywell’s SmartLine®​​ RMA 800 Remote Meter Assemblies provide process values in locations where the integral meter in the field instrument is difficult to view. They are used as output and status indicators for Honeywell SmartLine field products and can also be used as output indicators with any non-Honeywell transmitter operating within 4 to 20ma current loop or the appropriate digital protocol.

What Is It?

The RMA is available in the following configurations:

• RMA801: Honeywell Digital Enhanced (DE) protocol compatible indicator. This loop powered remote indicator can operate in either analog mode (4-20 mA) or DE mode. As an analog mode remote indicator, HART compatible devices can be connected.
• RMA803: Foundation Fieldbus H1 compatible indicator capable of displaying up to eight values from devices on the same H1 link. Values can be displayed in various engineering units as well as with different display formats (configurable- PV, Bar Graph and Trend Displays)
