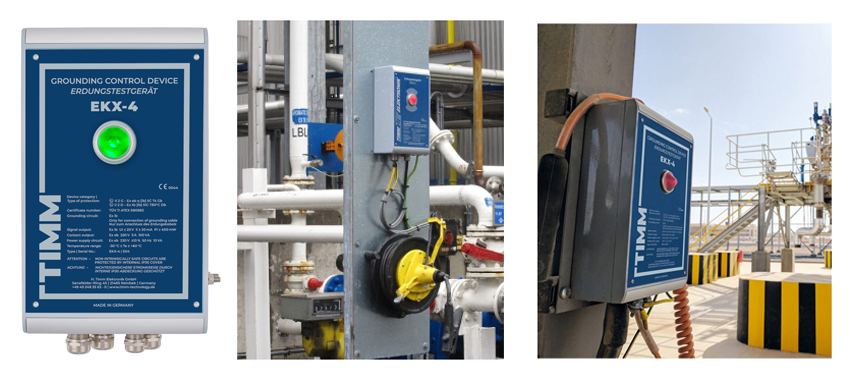

Grounding Control Device EKX-4

DESCRIPTION
  • Monitored grounding during loading and unloading inflammable liquids or solids in tank trucks, silo trucks and railway wagons
  • For use in gas and dust hazardous areas of zone 1 (equipment category II 2 G) and 21 (II 2 D)
  • Prevents manipulation due to object recognition
  • Controlled derivation of the static electricity
  • Immediate interruption of the loading operation when unsafe grounding connection occurs
  • According to all currently relevant EMC and ATEX directives
  • High functional safety according to EN 61508 / SIL 2 (Hardware-Assessment)

BENEFITS OF EKX-4

  • Prevents manipulation due to object recognition (by measuring the impedance)
  • Opening of the housing during operation in gas-hazardous areas is allowed
  • Automatic diagnosis system self-monitors all safety-related functions continuously
  • Due to the cable compensation, it is also possible to connect cables up to 30 m
  • NAMUR-compatible Ex i control output
TECHNICAL SPECIFICATIONS
Type of Protection: According to ATEX-standard 2014/34/EU: Ex II 2 G – Ex eb q [ib] IIC T4 Gb Ex II 2 D – Ex tb [ib] IIIC T80°C Db
EC Type Examination: TÜV 11 ATEX 080882
Power Supply: 230 V AC ± 10 %, 50 Hz, ca. 10 VA type of protection “increased safety“ Ex eb
Measuring Circuit: Max. Uo = 6, 7 V; Io = 68 mA; Po = 114 mW Max. 50 m (ex related specification, functional limitations must be observed) Type of protection Ex ib / ibD Only for connection of the grounding cable The measuring circuit is grounded
Contact Release Output: Switching power max 250 VAC 3 A 100 VA Type of protection “increased safety“ Ex eb 2 voltage free closing contact, internal monitored
Auxiliary Output: Switching power max. 250 VAC 3 A 100 VA Type of protection “increased safety“ Ex eb voltage free changeover contact, not monitored
Electronic Release Output: Max. Ui = 20 V Ii = 20 mA Pi = 400 mW Inner capacitances Ci negligibly small Inner inductances Li negligibly small Type of protection “intrinsic safety“ Ex ib 1 NAMUR-compatible transistor output Internal resistance: 1 kΩ or 11 kΩ Modulation: 10 Hz, duty factor 1:1
Protection of Enclosure: IP65
Operation Temperature: – 30 °C up to + 60°C
Dimensions (W x L x H): 170 mm x 306 mm x 110 mm
Weight: approx. 4.5 kg
